Unleash the Power of Bitcoin Mining with Tessarack "Lonestar"

Engineered for Efficiency, Built for Scale. The most advanced Bitcoin mining infrastructure solution designed and manufactured in the USA.

4.0MWat 80% Load Factor

1,056Server Slot Capacity

590,000CFM Cooling Power

System Overview

Tessarack "Lonestar" at a Glance

A comprehensive Bitcoin mining infrastructure solution with industry-leading specifications

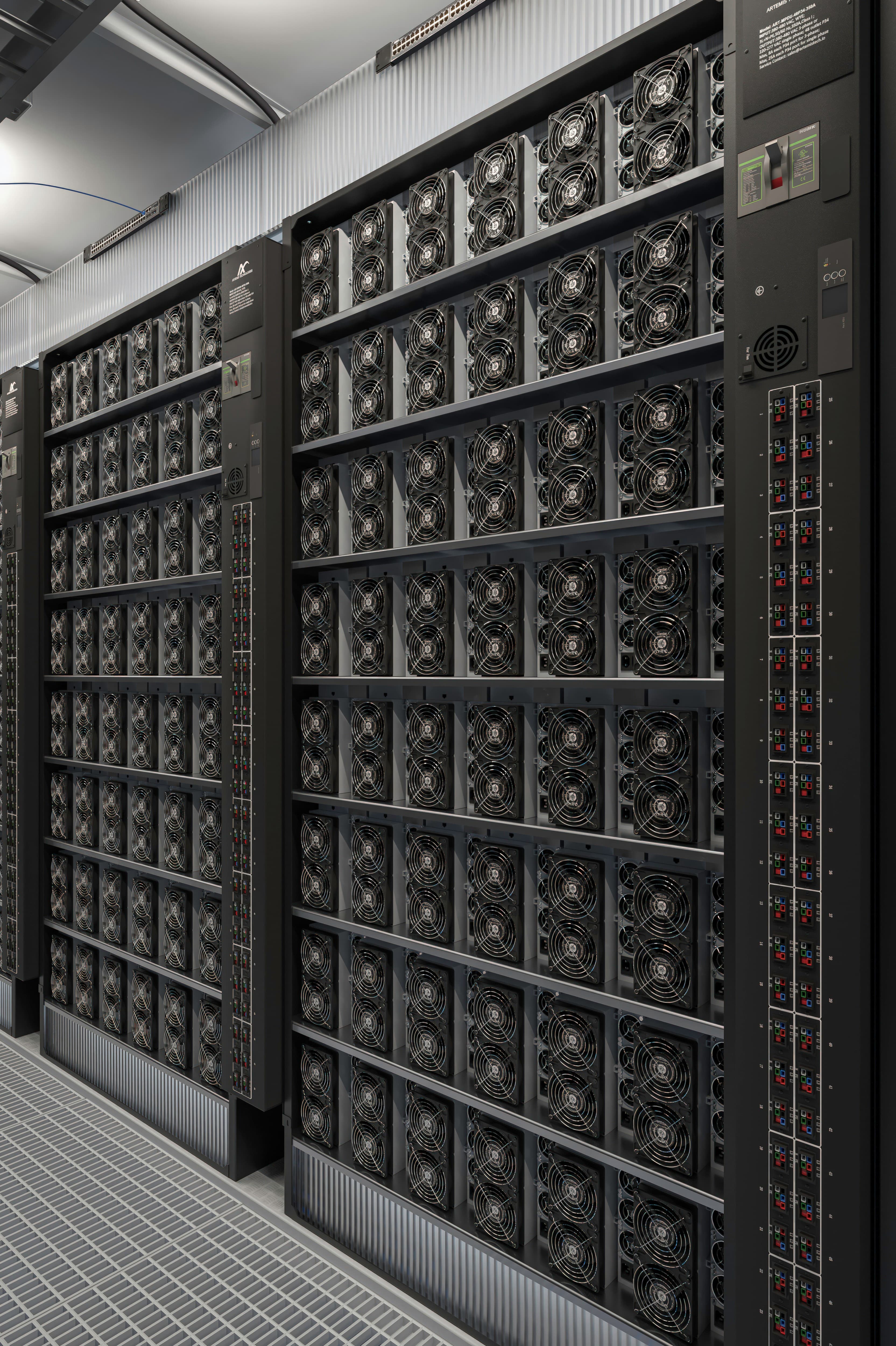

Power Infrastructure

Industrial-Grade Power Systems

The Tessarack "Lonestar" features a comprehensive power solution designed for maximum efficiency, reliability, and safety.

Transformer Specifications

4500 KVA capacity
15kv, 25kv or 35kv Primary available
433v / 250v Secondary
+- 2.5% & 5% Tap Changer Adjuster
600Amp Dead Front MV inputs with Surge Arrestors

Transformer Connection

16x – 4" sub SCH40 PVC
4,000 ft – 500 mcm aluminum wire
4x wires/phase lug connection

Primary Breaker Connection

4x 1200AMP / 2x 1000AMP Panels
Service Entrance Rated (no switchgear needed)
100 kAIC Fault Current
Arc Flash Protection
Emergency Power Off
100% load rated

Power Distribution Unit

350A, 380 – 480v ETL Listed
Feed from 300A panel breaker
48x P33 Sockets with 6KW rating per socket
Switched and Metered for remote control

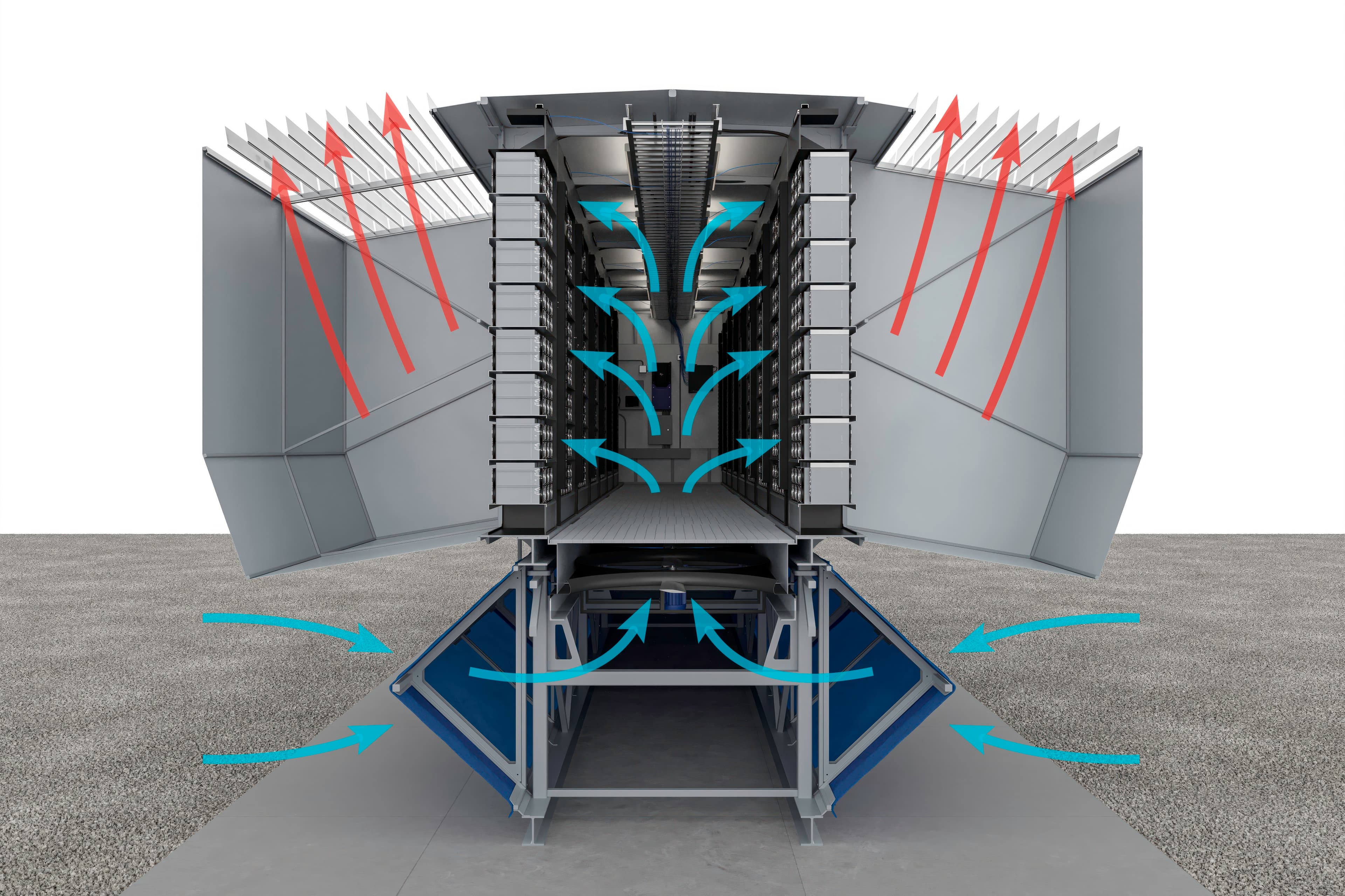

Advanced Cooling

Optimized Thermal Management

Industry-leading cooling technology designed for maximum efficiency and reliability

Fan System

10× 60" High Performance Fans
59,000 CFM @ 0.0 WC / 54,500 CFM @ 0.25 WC
Direct drive 10HP three phase motors
Positive pressure configuration
Sub 75 dBS for quieter operation

Positive Pressure Benefits

15% increase in airflow vs hot aisle exhaust
Lower temps = less motor stress, less maintenance
Reduced load on server fans
Controllable filtration
Hot aisle containment for maximum efficiency

Cooling Fogging System (optional)

10°F - 25°F temperature drops
1000 PSI atomized misting
2.75 low / 5.5 high GPM
Fully automated based on temperature & humidity

Filtration

Pleated MERV8 poly filter
Lower costs, rapid replacement
2x-4x - $400 replacement required yearly
Primary filter for dual filtration (optional)

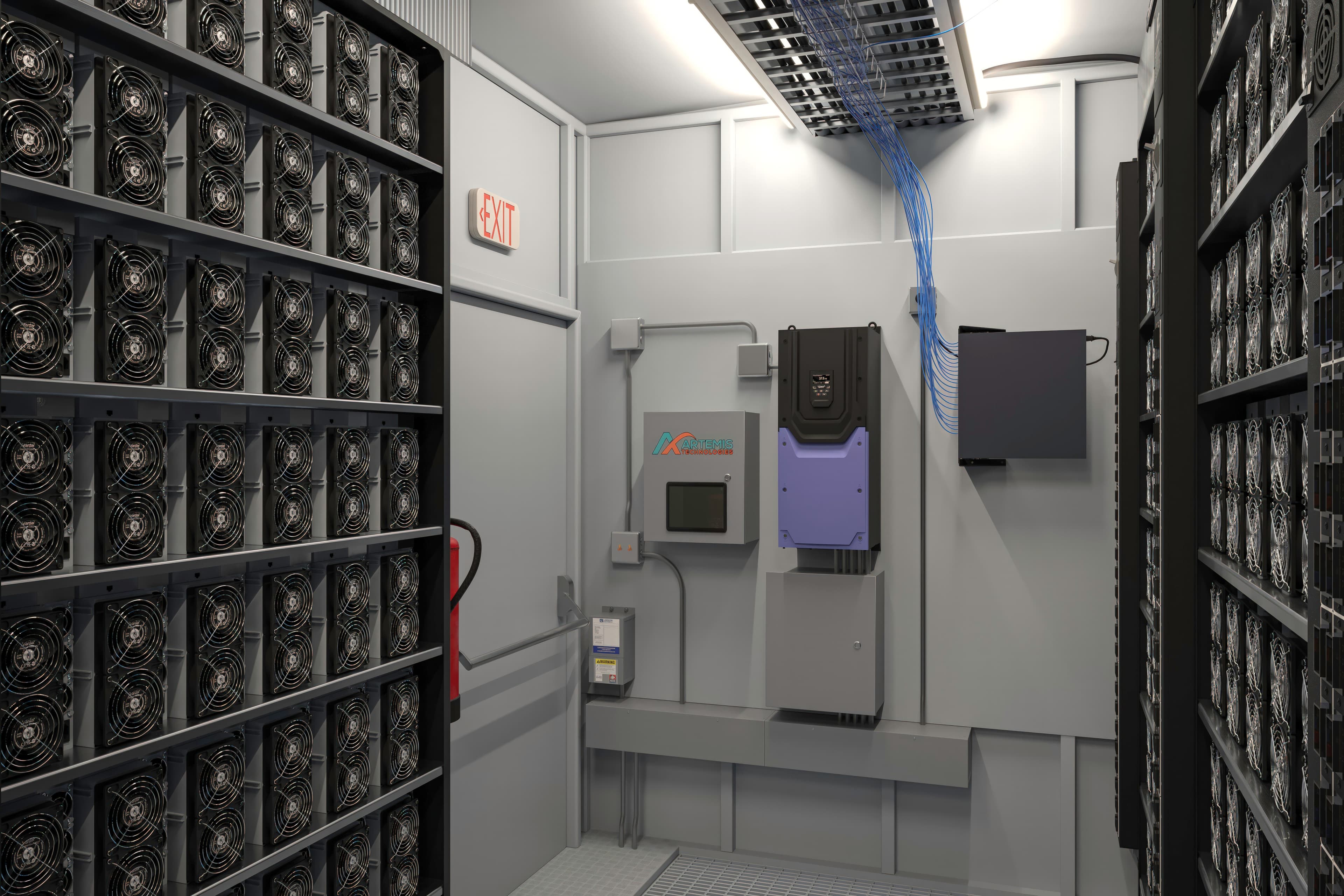

Smart Controls

Intelligent Automation Systems

Advanced automation and monitoring for optimal performance and remote management

HVAC Automation

Smart speed VFD automation with power logging
Fans increase & decrease speed based off temperature sensors
Automatic power down during curtailments
Remotely controllable
Emergency alerting

PDU Automation

Each outlet is metered and logged at billing grade accuracy
On / Off / Reboot remote control
Adjustable electronic trip settings
Phase balance and alerting

P33 Socket Benefits

Single or Three phase without any changes
Phases rotate providing perfect phase balance
High ampacity limit
Snap connection prevents accidental disconnects
IP55 rated

Network Infrastructure

PFSense opensource firewall
CAT 6A STP 10 GB run throughout
Onboard server with Foreman installed
Star topology with dedicated rack level switch on individual VLAN

Made in USA

Safety & Compliance

Built to the highest standards of safety and regulatory compliance

Technical Specifications

Detailed specifications of the Tessarack "Lonestar" Bitcoin mining system

4.0MW at 80% load factor
UL Listed Equipment
6,800 Amps
380v to 480v primary input
1,056x Server Slot Capacity
590,000 CFM
Includes Transformer
Made in USA - Designed & Manufactured in the USA
Weather protection by being off the ground
Sub 75 dBS - Quieter operation than competitors
